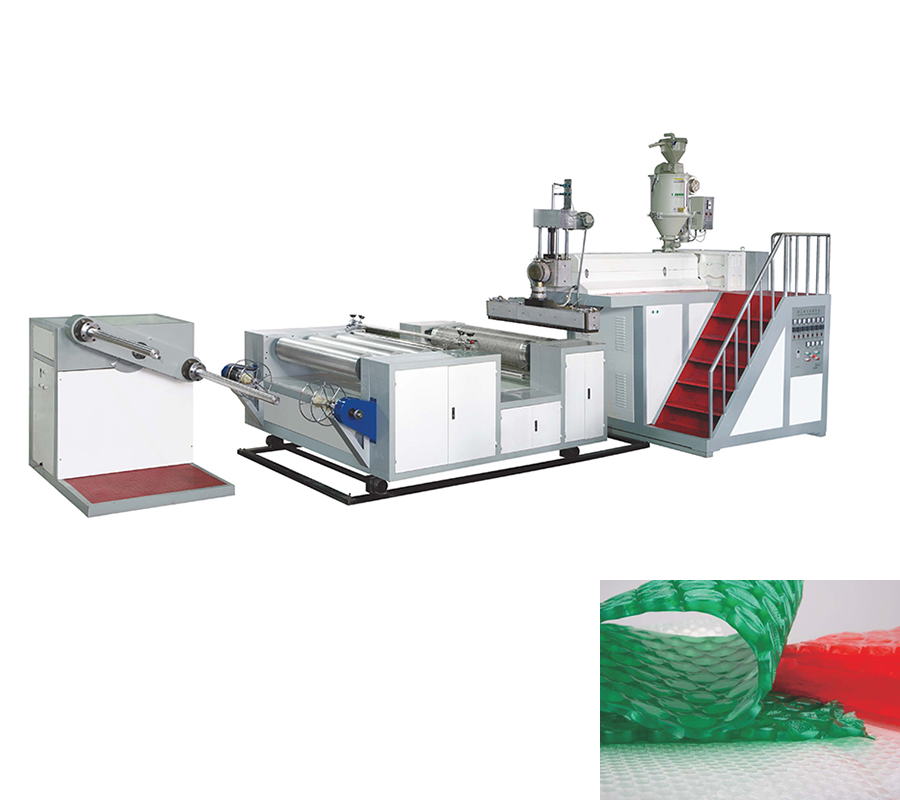

2 Layer Bubble Film Machine

Category:2 Layer Bubble Film Machine

Product features

Highlight
1.Machine life 2-3 times longer than regular models.
2.Bubble Roller:Double Jacket,Inner Layer with water cooling,outer layer by vacuum sucking. Roller made by Jianda, life time more than 7 years.
3.T-Die:Made by Bozhou, Material A1.2133 imported from Germany.
4.Gear Box:Hard Tooth Gear Box from Guomao or Kaibo,best quality, long using life, reduce maintenance and repair cost.
5.Screw:Zhoushan Screw, best melting, long life quality.

Product description


Machine brief description





Highlight

1.Machine life 2-3 times longer than regular models.

2.Bubble Roller:Double Jacket,Inner Layer with water cooling,outer layer by vacuum sucking. Roller made by Jianda, life time more than 7 years.

3.T-Die:Made by Bozhou, Material A1.2133 imported from Germany.

4.Gear Box:Hard Tooth Gear Box from Guomao or Kaibo,best quality, long using life, reduce maintenance and repair cost.

5.Screw:Zhoushan Screw, best melting, long life quality.


Parameters Table


Model

JDPE-1000

JDPE-1200

JDPE-1500

JDPE-2000

Main Extruder

Φ60mm

Φ65mm

Φ80mm

Φ90mm

Product Width

1000mm

1200mm

1500mm

2000mm

Capacity

50kg/hour

60 kg/hour

80 kg/hour

100 kg/hour

Working Line Speed

12-22m/min

12-22 m/min

12-22 m/min

12-22 m/min

Main Motor

15KW

18.5KW

22KW

37KW

Total Power

48KW

55KW

70KW

105KW

Power Supply

380V/3P/4L/50Hz

380V/3P/4L/50Hz

380V/3P/4L/50Hz

380V/3P/4L/50Hz

OveralDemension

9000x3500x2500mm

9500x3800x2500mm

10000x4000x2500mm

11500x4800x4500mm

Weight

4000kg

4200kg

4500kg

7000kg


Usable Material

Bubble Film machine use material LDPE MFI=2~7 as main material,can mix with LLDPE MFI=1.0~1.5 as support material, or use recycle LDPE MFI=2~4 as base material, to make bubble film products

Story of Developing

By Year 2015, we found a material formula from Russia, which guide us to mix HDPE with LDPE for Bubble Film Manufacturing, to make film more rigid without changing thickness.

By that time such formula combination only works in our machine because it has very high request of Screw, T-Die and Forming Roller. Our clients proved it after testing and found such formula is very profitable in market. We public this formula free and within that year our bubble machine sales amount reached the highest of history. Also proved our quality in a much easier way without long years’ using.
