Single Side Extrusion Lamination

Category:Paper Extrusion Laminating Machine

Product features

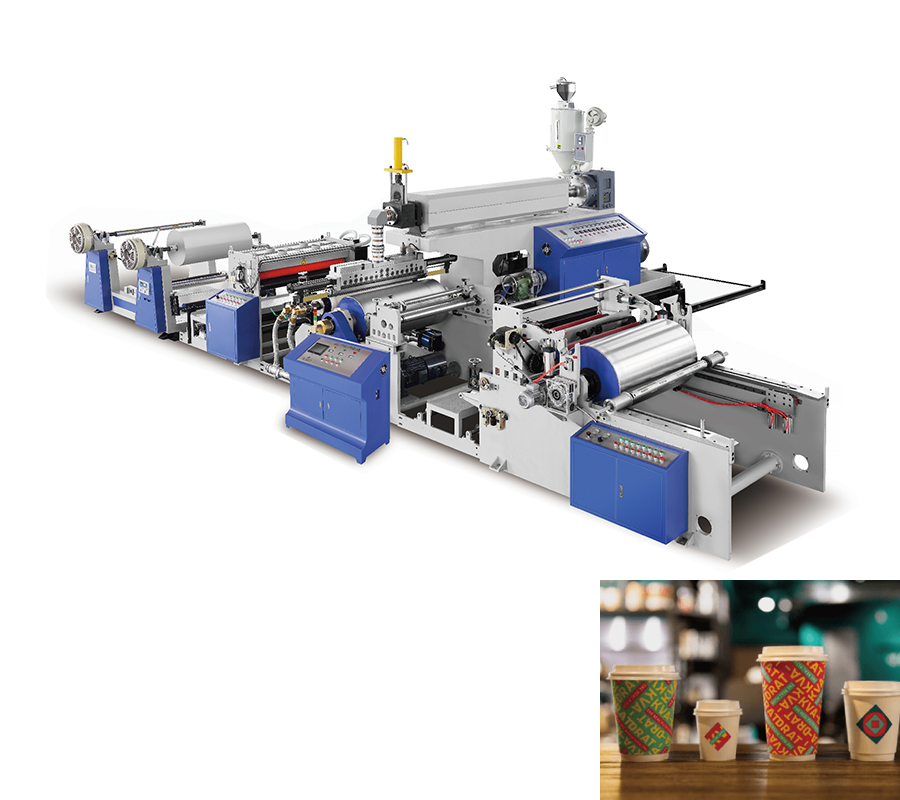

High speed Lamination Machine uses lamination grade LDPE, LLDPE, PP, EVA, EAA as coating material, mainly designed for paper single side coating, real production speed can reach 180M/Min.
Entire Machine control by PLC, weight more than 10 Tons, to ensure machine stable while running at 180M/Min.

Product description

Machine brief description


High speed Lamination Machine uses lamination grade LDPE, LLDPE, PP, EVA, EAA as coating material, mainly designed for paper single side coating, real production speed can reach 180M/Min.

Entire Machine control by PLC, weight more than 10 Tons, to ensure machine stable while running at 180M/Min.




Highlight


Thickness Automatic Setting

Compounding Part Process and Speed Showing, Screw Rotate and Speed Showing, Extruder & T-Die Temperature Setting and adjusting, entire machine speed adjusting all in Center Control PLC.Pre-Load your process data in Touch Screen(Paper Width, Lamination Thickness)can allow you to work with Synchronization of Compounding Speed, Screw Speed and Thickness of Automatic calculus accurate(For Example: Paper Width 1000mm, lamination thickness 20µm. Set above data and choose Synchronization Calculation On. Then entire machine running you only need to press speed up or speed down button, to make product in precision automatic control, and can make sure thickness remain even while speed down or up), also you can work with separate control.


Automatic Tension Control

With Linear Positioner and Precision pressure regulating valve) to sense tension, adjust by PLC close loop tension control.


Automatic EPC

Brushless dc push rod drive rectifying control system,Moving distance ±75mm,Motor control by Controller,Acoustic sensors on edge,high precision automatic edge matching.


Product parameters


Model

JDLM1300/100

JDLM1600/105

Screw Diameter

φ100 mm

φ105 mm

L/D

33:1

33:1

Product Width

600-1200mm

800-1500mm

Coating Thickness

0.01-0.10 mm

0.01-0.10 mm

Designed Line Speed

210 m/min

210 m/min

Max Extrusion

300kg/h

330kg/h

Main Motor

45 kw

55 kw

Total Power

135kw

165kw

Main Un-Winder

≤φ1300 mm

≤φ1300 mm

Winder

≤φ1300 mm

≤φ1300 mm

Weight

11000kg

13000kg

Overal Demension

10000×9000×3200 mm

96000×12000×3200 mm

Power Supply

380V/3P/4L/50Hz

380V/3P/4L/50Hz
