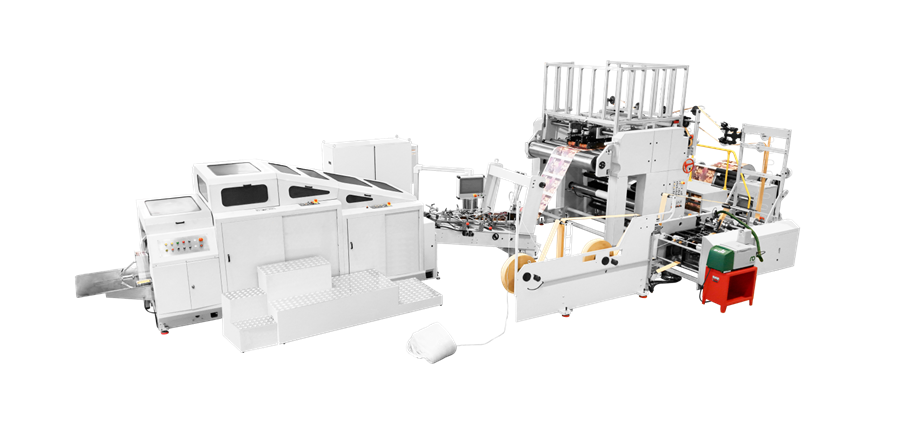

550NT-Automatic High Speed Square Bottom Paper Bag Machine

Properties and uses Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.

Main features

  1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.

2.Adopt Germany  REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.

  1. Germany  REXROTH servo motor and German  SICK Photoelectric eye correction, tracking printing bag accurately.

4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.

5.Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.



Model

550NT

Cut bag length(C)

380—760mm

Cut the length of the handle paper bag

380—660mm

Paper bag width(W)

240—550mm

The width of the handle paper bag

240—550mm

Paper bag bottom width(H)

120—300mm

Planar graph























Paper thickness

80—160g/㎡

Machine Speed

30—130pcs/min

Paper bag speed

30—110pcs/min

Paper roll width

750—1730mm

Roll paper diameter

Φ1500mm

Inner diameter of paper

Φ76mm

The handy paper bag weighs heavily

80—160g/㎡

The paper roll width of the handle

750—1730mm

Rope Machine Requirements

Handle length

380mm

Patch length(A)

190mm

Hand patch width(B)

45—50mm

Handle distance(F)

95mm

Paper rope height(F)

100mm

Rope diameter

Ф3—5mm

patch paper roll diameter

ф1200mm

patch paper thickness

90—110g/㎡

Round rope drawing



Bottom folding type



Cutting knife

Sawtooth cutting

Machine power

380V  3(phase)  4(wire) 53.9KW

Total weight

23000kg

Machine Dimension

13421x5838x3315mm
