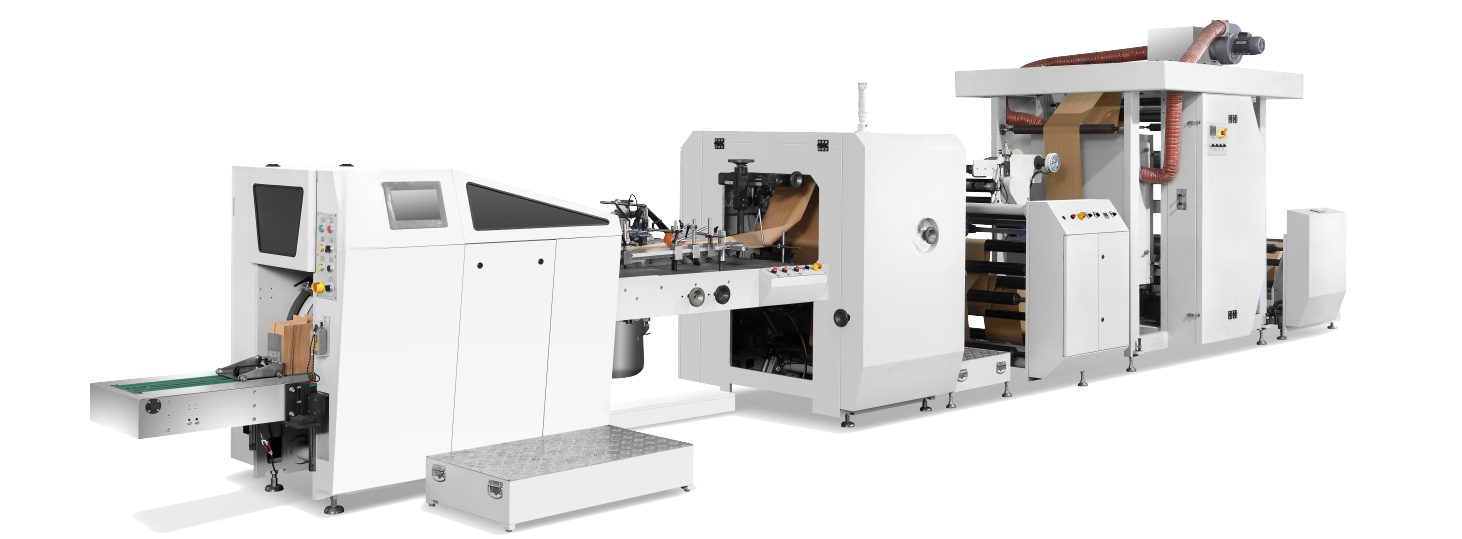

G250J-Automatic High Speed Flat Bottom Paper Bag Machine

Properties and uses Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.

Main features

  1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.

2.Adopt Germany  REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.

  1. Germany  REXROTH servo motor and German  SICK Photoelectric eye correction, tracking printing bag accurately.

4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.

5.Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.

Model

G250J

Cut bag length(C)

110—460mm

Paper bag width(W)

70—250mm

Insert size

20—120mm

Bag mouth height

15/20mm

Planar graph

















Paper thickness

35—80g/m²

Machine Speed

50—350pcs/min

72m/min

Paper bag speed

50—330pcs/min

Paper roll width

160—760mm

Roll paper diameter

Φ1000mm

纸卷内径

Inner diameter of paper

Φ76mm

Machine power

380V  3(phase) 4(wire) 24KW

Total weight

4500kg

Machine Dimension

7100x3000x2200mm

G250J Automatic High Speed Flat Bottom Paper Bag Machine Could Be Customized Without 2 Colors Printing Machine.

Please send inquiry to get more detailed information.

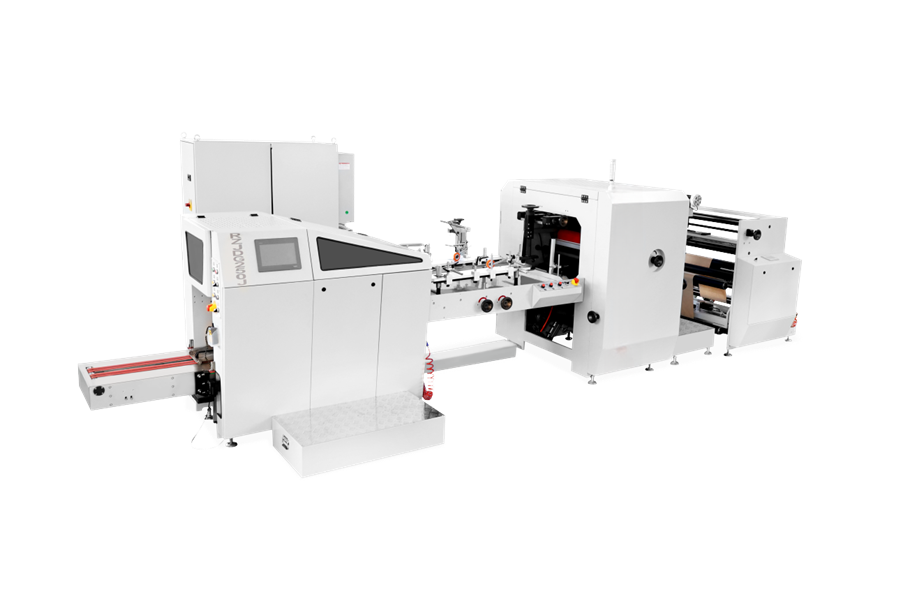

Reference Picture as below:
