1.This motor is equipped with frequency converter timing device, automatic tension control system for unwinding.
2.photoelectric auto error-correction , three motor for controlling the center rewinding can be touched with
surface, double shafts rewinding interlaced without meeting.
3.It also has the function of meter can be counting setup in advance and auto stop working.
4.waste automatic slit by round cuter（Can use razor blade device as optional ).
PERFORMANCE AND CHARACTERISTICS

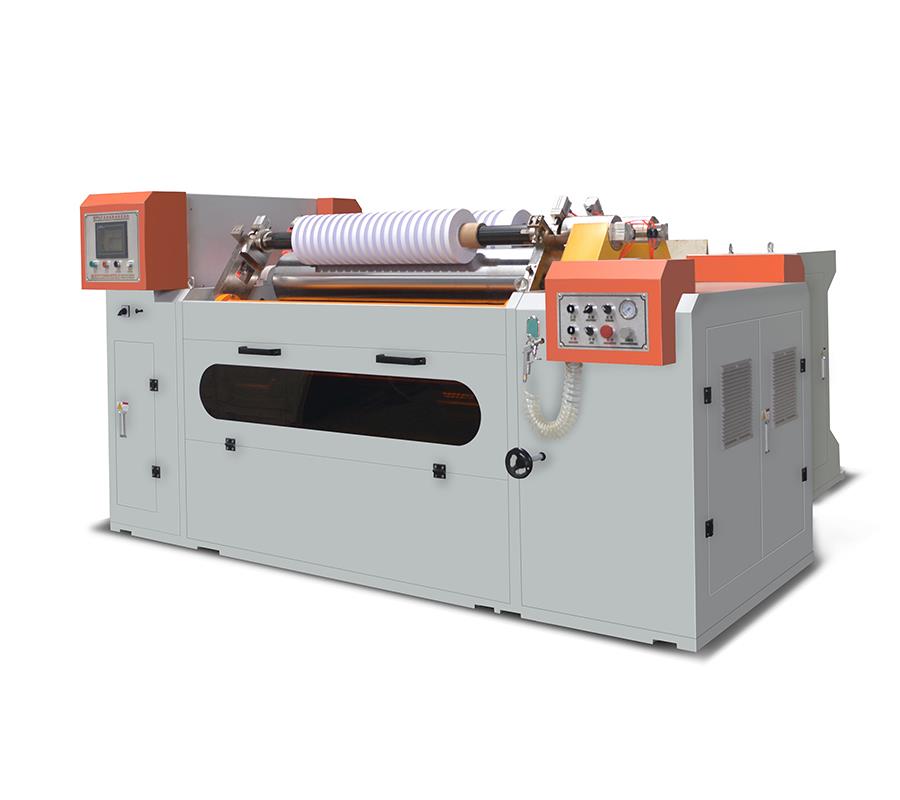

This machine is suitable for slitting rolling materials such as paper, aluminum foil, PVC, plastic film, insulation
material, etc
1.This motor is equipped with frequency converter timing device, automatic tension control system for unwinding.
2.photoelectric auto error-correction , three motor for controlling the center rewinding can be touched with
surface, double shafts rewinding interlaced without meeting.
3.It also has the function of meter can be counting setup in advance and auto stop working.
4.waste automatic slit by round cuter（Can use razor blade device as optional ).
|
Model |
BDFQ-900D |
BDFQ-1100D |
BDFQ-1300D |
|
Max. Width of unwinding |
900mm |
1100mm |
1300mm |
|
Max. Diameter of unwinding |
Φ1400/800mm |
Φ1400/800mm |
Φ1400/800mm |
|
Min. Width of slitting |
5mm |
5mm |
5mm |
|
Max. Diameter of rewinding |
Φ550mm |
Φ550mm |
Φ550mm |
|
Total power |
17kw |
17.Gkw |
21kw |
|
Weight (approx. ) |
4000kg |
4200kg |
4400kg |
|
Overall dimension (LxWxH) (mm) |
3600×2300×1600 |
3600×2500×1600 |
3600×2700×1600 |
