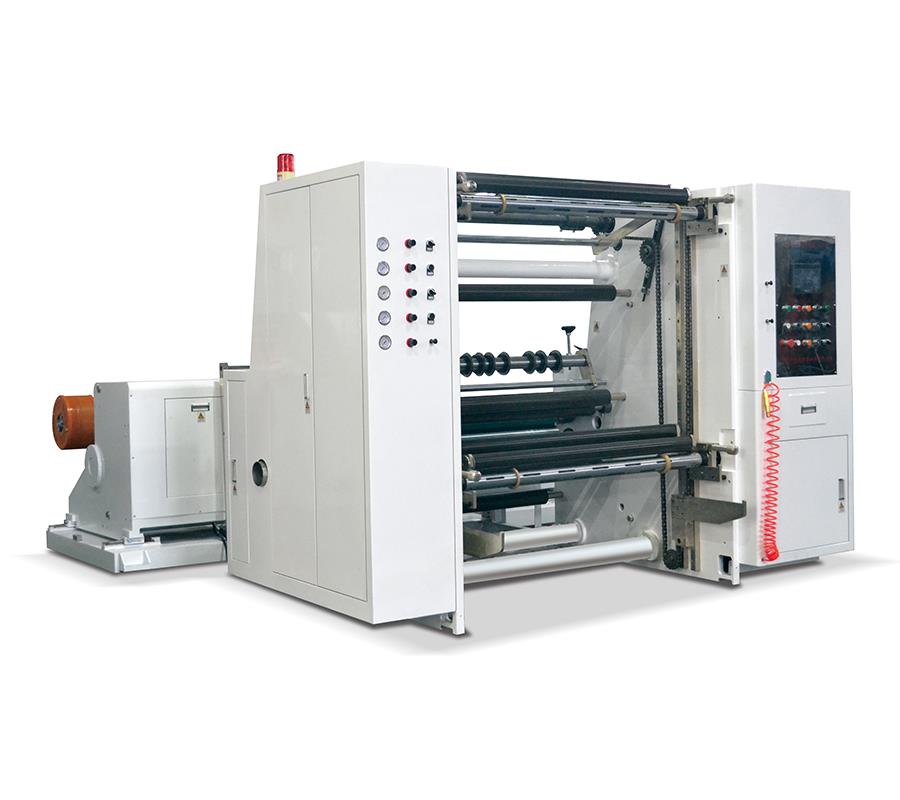

1.This machine adopts PLC touch screen control. Three motor vector control and automatic taper tension, central surface reeling.
Frequency converter timing for main motor, keeping speed up and stable operation.
2.It has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and
unloading.
3.It adopts photoelectric automatic error correction adjustment system for unwinding, materials will be easy slit.
4.Equipped with automatic waste film blowing device.
5.Hydraulic shaftless loading system (can use automatic loading by phneumatic as optional ).
|
Model |
WZFQ-1100A |
WZFQ-1300A |
WZFQ-1600A |
|
Max width |
1100mm |
1300mm |
1600mm |
|
Max Diameter for unwinding |
φ1400mm |
φ1400mm |
φ1400mm |
|
Min width of slitting |
50mm |
50mm |
50mm |
|
Max Diameter of rewinding |
φ1000mm |
φ1000mm |
φ1000mm |
|
Speed |
10-350m/min |
10-350m/min |
10-350m/min |
|
Total Power |
22KW |
24KW |
28KW |
|
Power supply |
380V/50hz |
380V/50hz |
380V/50hz |
|
Weight |
7600kg |
7800kg |
8000kg |
|
Overal dimension(LxWxH) |
3000x2000x2200(mm) |
3000x2400x2200(mm) |
3000x2700x2200(mm) |
