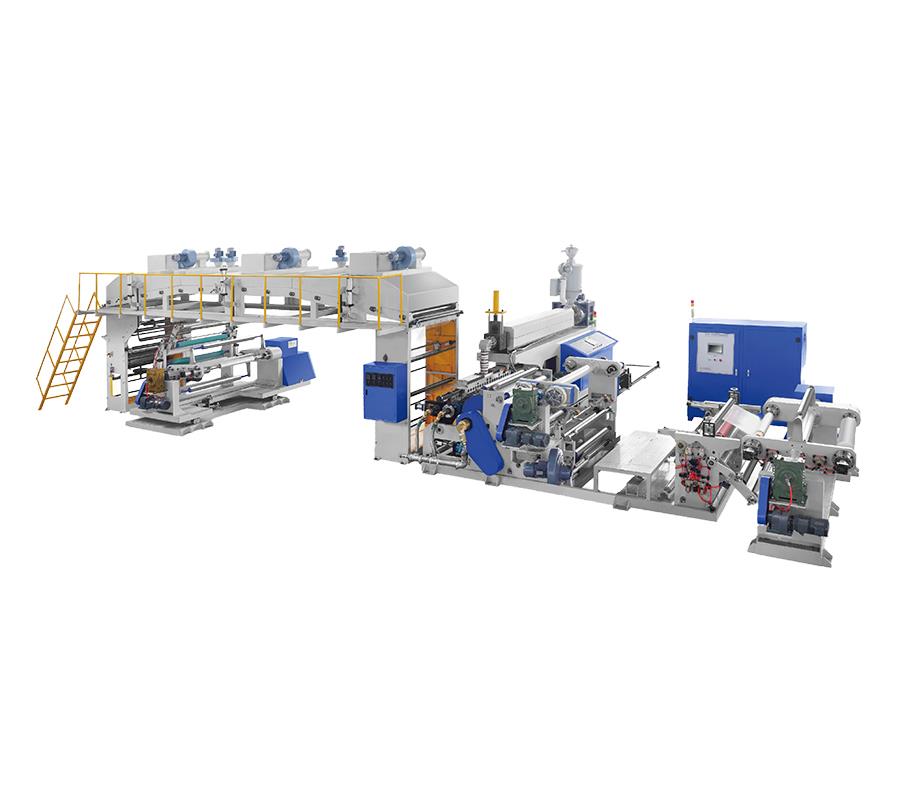

1.Machine can do stable running 150M/Min speed running without problem. Fully Automatic of Auto-Splicer, Tension Control and EPC, make sure high efficiency and reliable.
2.This model is double preciseness than paper base lamination machine, no matter tension, coating variation and trimming and etc., all require as less as possible.
3.This model has no certain model, almost every order machine is specially customized based on product and formulation. To make sure maximum effort of production.
4.We have full supply resources of each key parts of machine, including gears, glue coating machine, screws and T-Dies. In different brands and different applications. To make sure we can always supply the best to our clients according to their product.
|
Screw |
φ90 mm |
|
L/D |
33:1 |
|
Finished Film Width |
600-1000mm |
|
Coating Thickness |
0.01-0.10 mm |
|
Material |
LDPE、LLDPE、PP、EVA、EAA |
|
Design Line Speed |
185 m/min |
|
Max Extrusion |
200kg/h |
|
Main Motor Power |
45 kw |
|
Total Power |
190kw |
|
Main Unwinder Diameter |
≤φ600 mm |
|
2nd Unwinder Diameter |
≤φ500 mm |
|
Winder Diameter |
≤φ800 mm |
|
Weight |
12t |
|
Overall Dimension |
9000×15000×3200 mm |
|
Power Supply |
380V/3P/4L/50Hz |
