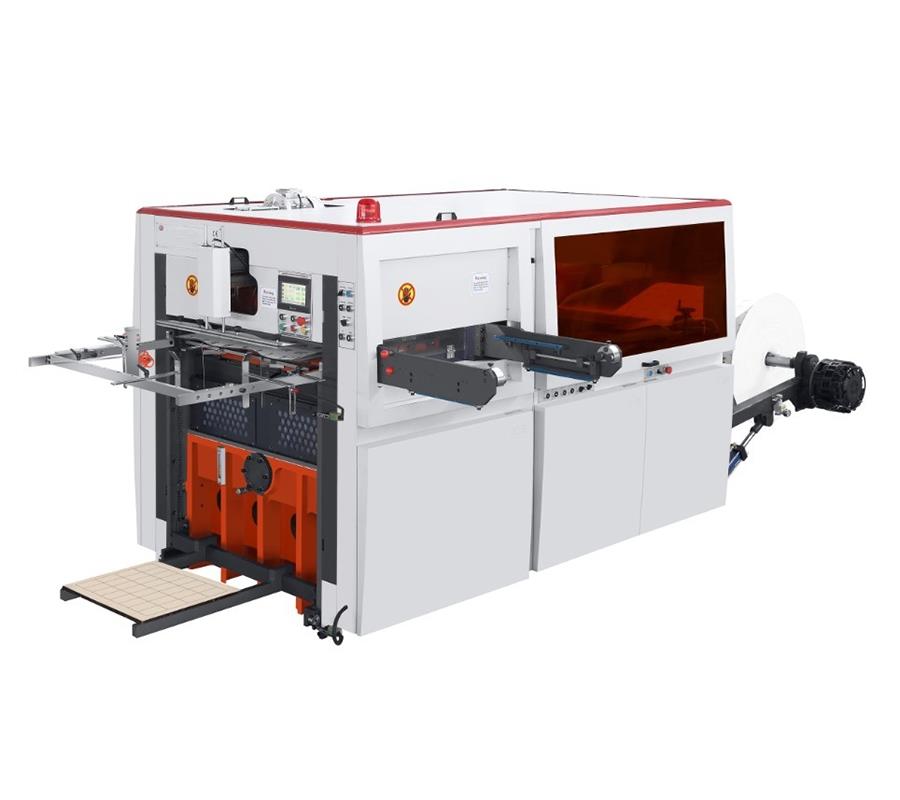

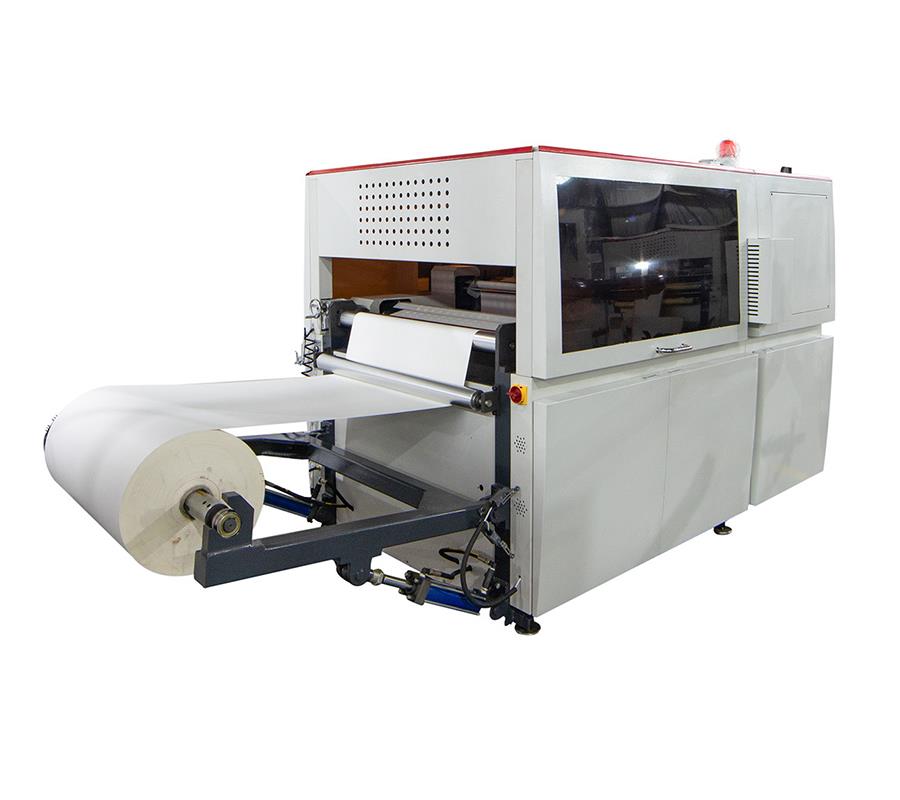

It is suitable for creasing, die-cutting various cigarette case, medicine case, envelopes, paper cup, paper bowl, gift bags and various paper products. It can finish paper embossing, creasing, die-cutting and automatic collection all steps in one time.
|
Model |
FD-970×550 |
FD-1080×640 |
FD-1200×640 |
FD-1400×780 |
|
Max Cutting Area（mm） |
950×520 |
1050×600 |
1160×600 |
1350×740 |
|
Cutting Precision（mm） |
0.20 |
0.20 |
0.20 |
0.20 |
|
Paper Gram Weight（g/m³） |
120-600 |
120-600 |
120-600 |
180-600 |
|
Production Capacity（times/min） |
90-140 |
90-140 |
90-140 |
90-120 |
|
Air Pressure Requirement（Mpa） |
0.5 |
0.5 |
0.5 |
0.5 |
|
Air Pressure Consumption（m³/min） |
0.25 |
0.25 |
0.25 |
0.25 |
|
Max Cutting Pressure（T） |
280 |
280 |
280 |
280 |
|
Weight（T） |
7.5 |
8.5 |
9.5 |
11 |
|
Max Roller Diameter（mm） |
1600 |
1600 |
1600 |
1600 |
|
Total Power（kw） |
14 |
14 |
14 |
20 |
|
Dimension（mm） |
5500×2300×1800 |
5500×2500×1800 |
5500×2800×2000 |
7000×3500×2200 |
