Tandem Extrusion Lamination Machine (Auto Splicer)

Category:Paper Extrusion Laminating Machine

Product features

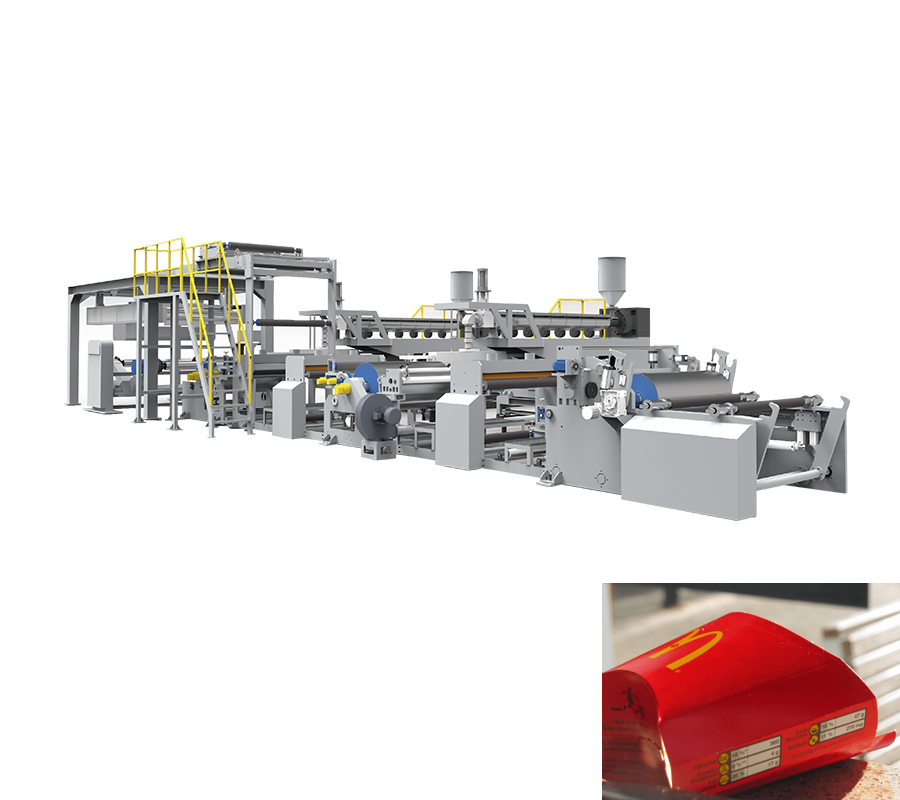

Full Automatic High Speed Double Side Extrusion Lamination Machine with Hydraulic Rodless and Auto Splicer
High speed Lamination Machine uses lamination grade LDPE,LLDPE、PP、EVA、EAA as coating material,mainly designed for paper double side coating, real production speed can reach 180M/Min.
Entire Machine control by PLC, weight more than 50Tons, to ensure machine stable while running at 180M/Min.

Product description


Machine brief description


High speed Lamination Machine uses lamination grade LDPE,LLDPE、PP、EVA、EAA as coating material,mainly designed for paper double side coating, real production speed can reach 180M/Min.


Entire Machine control by PLC, weight more than 50Tons, to ensure machine stable while running at 180M/Min.


Machine Compounents

  1. Double Station Un-Winder
  2. Auto-Splicer
  3. Automatic-EPC
  4. Traction
  5. Corona Treater

(After treating can increase compounding ability)

  1. Extruder

(With Static Mixer,T-Die Extrusion,ensure stable flow and extrusion coating)

  1. Three Roller Compounding

(Big Diameter Chill Roller, Double Jacket with Inner Spiral flow)

(Different Toughness standard of Silicon roller for different usage)


Trimming Collection

Double Station Winder(Automatic Cutting and Changing)

SHAPE \* MERGEFORMAT




Highlight


Thickness Automatic Setting

Compounding Part Process and Speed Showing、Screw Rotate and Speed Showing、Extruder & T-Die Temperature Setting and adjusting, entire machine speed adjusting all in Center Control PLC。Pre-Load your process data in Touch Screen(Paper Width、Lamination Thickness)can allow you to work with Synchronization of Compounding Speed、Screw Speed and Thickness of Automatic calculus accurate(For Example: Paper Width 1000mm,lamination thickness 20µm,Set above data and choose Synchronization Calculation On,Then entire machine running you only need to press speed up or speed down button,to make product in precision automatic control, and can make sure thickness remain even while speed down or up),also you can work with separate control


Double Side Coating

Instead of coating one side and take paper roll to coat again on the other side by two step. This way will cause tension change and inevitably cause paper waste(Please note paper after coating is not recycable). Double Side coating machine can do double side coatin in just one process so avoid tension problem and wastage.



Auto-Splicer

For Super Speed model working speed is too fast, almost every 8-15 minutes will require to change another roll of paper, auto-splicer can change paper rolls automaticly in high speed process with minimum wastage.


Automatic Tension Control

With Linear Positioner and Precision pressure regulating valve) to sense tension, adjust by PLC close loop tension control.


Automatic EPC

Brushless dc push rod drive rectifying control system,Moving distance ±75mm,Motor control by Controller,Acoustic sensors on edge,high precision automatic edge matching.


Product parameters


Model

JDLM1300/100×2

JDLM1600/105×2

Screw Diameter

φ100 mm

φ105 mm

L/D

33:1

33:1

Product Width

600-1200mm

800-1500mm

Coating Thickness

0.01-0.10 mm

0.01-0.10 mm

Coating material (Lamination Grade)

LDPE、LLDPE、PP、EVA、EAA

LDPE、LLDPE、PP、EVA、EAA

Designed Line Speed

210 m/min

210 m/min

Max Extrusion

300kg/h

330kg/h

Main Motor

45 kw

55 kw

Total Power

155kw

180kw

Main Un-Winder

≤φ1500 mm

≤φ1500 mm

Winder

≤φ1300 mm

≤φ1300 mm

Weight

15000kg

17000kg

Overal Demension

15000×8000×3200 mm

15000×10000×3200 mm

Power Supply

380V/3P/4L/50Hz

380V/3P/4L/50Hz

Inquiry

If you have any enquiry about quotation or cooperation,please feel free to email us ator use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
