Main features
- Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.
2.Adopt Germany REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.
- Germany REXROTH servo motor and German SICK Photoelectric eye correction, tracking printing bag accurately.
4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.
5.Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.
Technical Parameter
|
Model |
330（L Shaped Collector） |
|
Cut bag length（C） |
270—530mm |
|

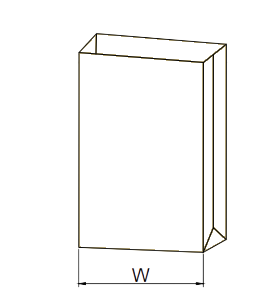

Paper bag width（W） |
120—330mm |
|
Paper bag bottom width（H） |
70—180mm |
|
Planar graph |
|
|
Paper thickness |
60—150g/㎡ |
|
Machine Speed |
30—220pcs/min |
|
Paper bag speed |
30—180pcs/min |
|
Paper roll width |
400—1050mm |
|
Roll paper diameter |
Φ1500mm |
|
Inner diameter of paper |
Φ76mm |
|

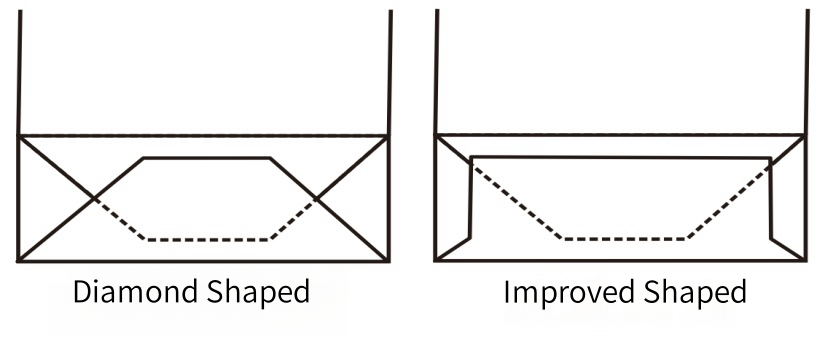

Bottom folding type |
|
|
Cutting knife |
Sawtooth cutting |
|
Machine power |
380V 3（phase) 4（wire) 15KW |
|
Total weight |
8500kg |
|
Machine Dimension |
10000x3920x2180mm |

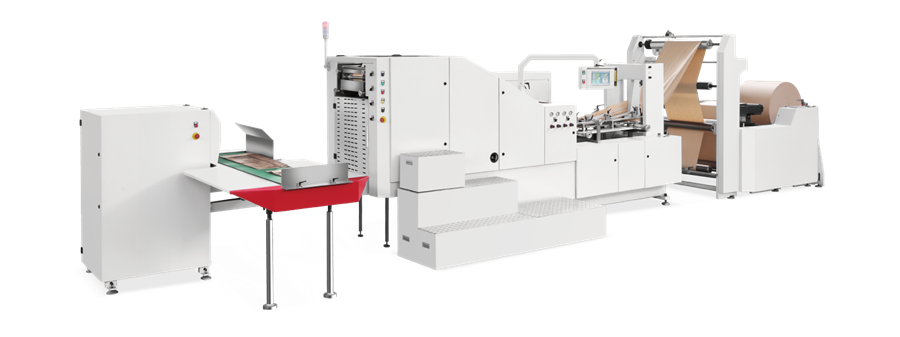

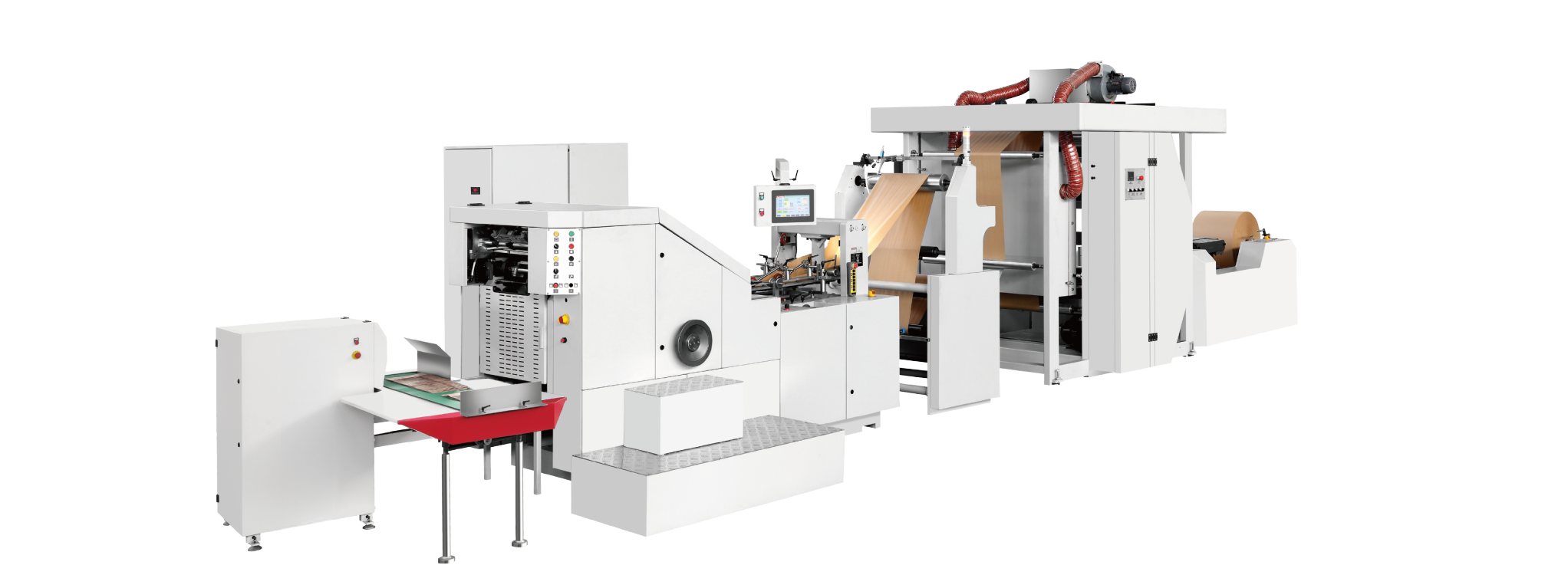

330-Automatic High Speed Square Bottom Paper Bag Machine Could Be Customized With 2 Colors Printing Machine.
Please send inquiry to get more detailed information.
Reference Picture as below:
