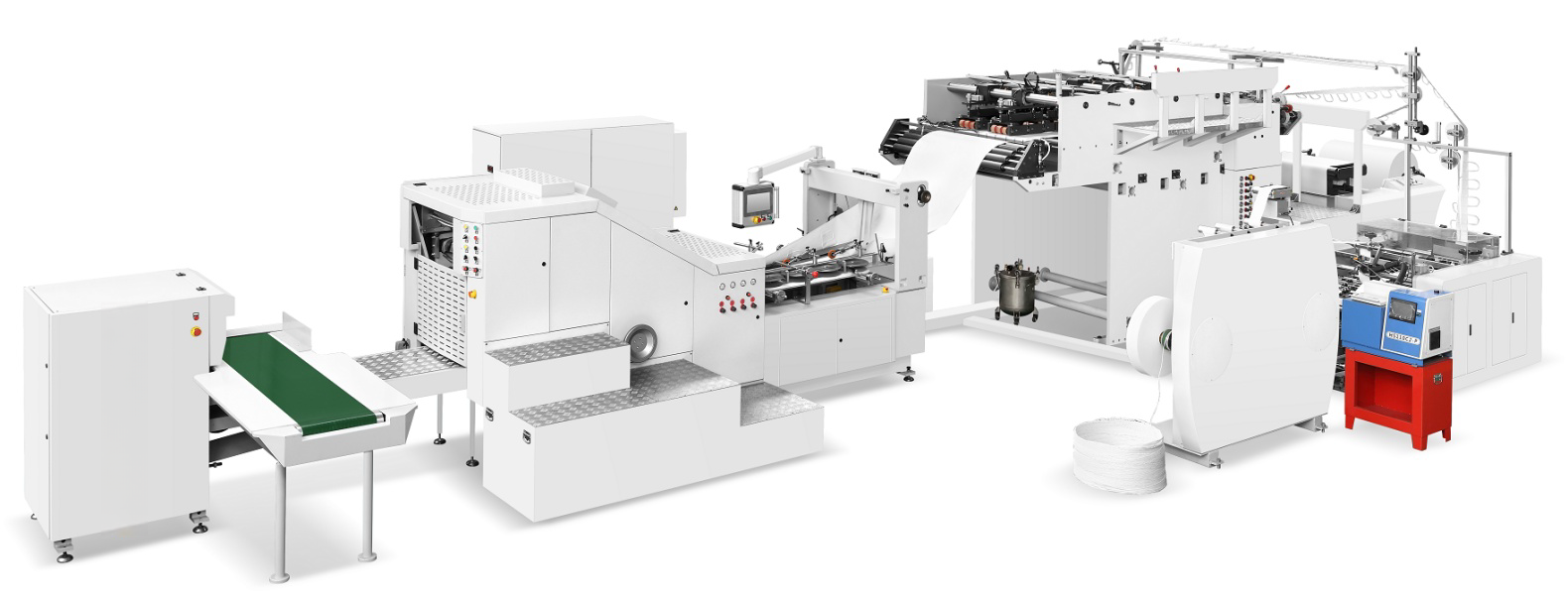

Automatic High Speed Square Bottom Paper Bag Machine

Main features

Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.

2.Adopt Germany REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.

Germany REXROTH servo motor and German SICK Photoelectric eye correction, tracking printing bag accurately.

4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.

5.Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.

The main features of flexo printing

1.The ink is transported by a separate gear motor, and the ink pump circulates the ink.

2.Use a closed scraper to scrape ink, ensure high-speed printing and prevent ink splash.

3.Pneumatic lift and drop mode, automatically start after shutdown, automatically transport ink after printing plate installation,Printing plate automatic printing after booting.

4.Independent closed type hot and cold dual function drying system.

Technical Parameter

Model	330TF
Cut bag length（C）	270—530mm
Cut the length of the handle paper bag	270—430mm
Print the length of the cut bag	270—525mm
Paper bag width（W）	120—330mm
The width of the handle paper bag	200—330mm
袋底宽度（H） Paper bag bottom width	80—180mm

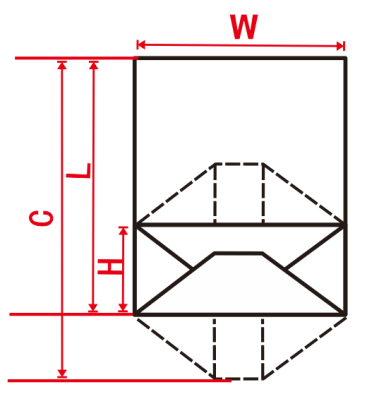

Planar graph
Paper thickness	60—150g/㎡
Machine Speed	30—200pcs/min
Paper bag speed	30—180pcs/min
Paper roll width	370—1050mm
Roll paper diameter	Φ1500mm
Inner diameter of paper	Φ76mm
The handy paper bag weighs heavily	80—150g/㎡
The paper roll width of the handle	580—1050mm
Round Rope Machine Requirements
Handle length	360mm
Patch length	152mm
Hand patch width	45—50mm
Handle distance	75mm
Paper rope height（D）	100mm
Rope diameter	Ф4—5mm
patch paper roll diameter	ф1200mm
patch paper thickness	90—110g/㎡

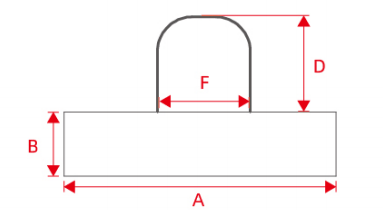

Round rope drawing
Flat Rope Machine Requirements
Flat rope width（E）	12mm
Flat rope spacing（A）	78mm
Flat rope height（D）	90mm
Patch width（B）	45—50mm
Length of patch（F）	152mm
Length of flat rope	352mm
patch paper thickness	90—110g/㎡

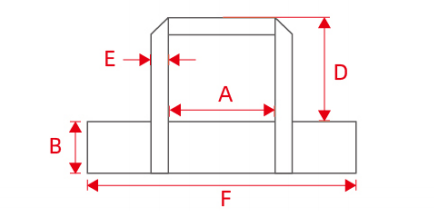

Flat rope drawing
Bottom folding type
Cutting knife	Sawtooth cutting
Printing Area
Print paper roll width	370—1050mm
Printing length	270—525mm
Printing speed	5—90m/min
Color accuracy	≤±0.20mm
Plate thickness （Including the thickness of the double—sided tape）	2.28mm 0.38mm
Working Air Current	≥0.36m³/minute，0.5—0.8MPa More than 0.36m³/ minute, 0.5—0.8 MPa
(With printing press)Machine power	380V 3（phase) 4（wire) 50.72KW
(With printing press)Total weight	25000kg
(With printing press)Machine Dimension	16375x5600x3315mm
