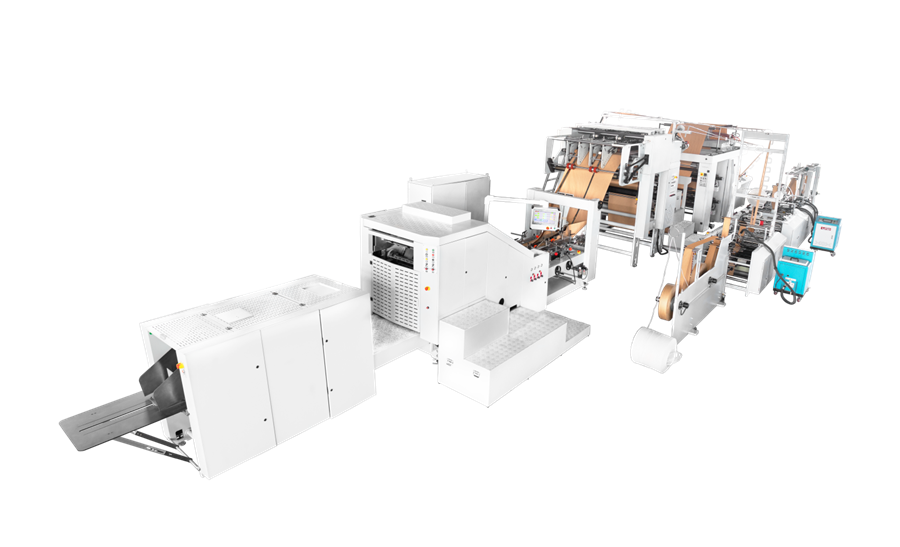

450ATF1Automatic High Speed Square Bottom Twisted Rope Handle And Flat Handle Paper Bag Machine

Properties and uses Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.

Main features

  1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.

2.Adopt Germany  REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily.

  1. Germany  REXROTH servo motor and German  SICK Photoelectric eye correction, tracking printing bag accurately.

4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control.

5.Raw material unwinding EPC adopt YOUDAO, reduce adjustment time.

Model

450ATF

Cut bag length(C)

300—630mm

Cut the length of the handle paper bag

300—530mm

Paper bag width(W)

220—450mm

The width of the handle paper bag

240—450mm

Paper bag bottom width(H)

100—200mm

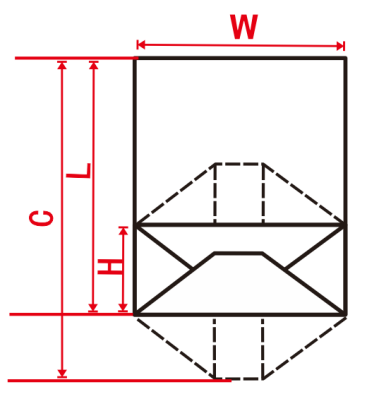

Planar graph















Paper thickness

80—150g/㎡

Machine Speed

30—150pcs/min

Paper bag speed

30—120pcs/min

Paper roll width

670—1330mm

Roll paper diameter

Φ1500mm

Inner diameter of paper

Φ76mm

The handy paper bag weighs heavily

80—150g/㎡

The paper roll width of the handle

710—1330mm

Round Rope Machine Requirements

Handle length

380mm

Patch length(A)

190mm

Hand patch width(B)

45—50mm

Handle distance(F)

95mm

Paper rope height(D)

100mm

Rope diameter

Ф3—5mm

patch paper roll diameter

ф1200mm

patch paper thickness

90—110g/㎡

Round rope drawing

Flat Rope Machine Requirements

Flat rope width(E)

12mm

Flat rope spacing(A)

78mm

Flat rope height(D)

90mm

Patch width(B)

45—50mm

Length of patch(F)

190mm

Length of flat rope

350mm

patch paper thickness

90—110g/㎡

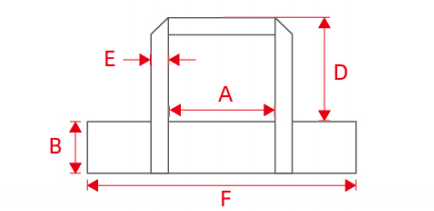

Flat rope drawing

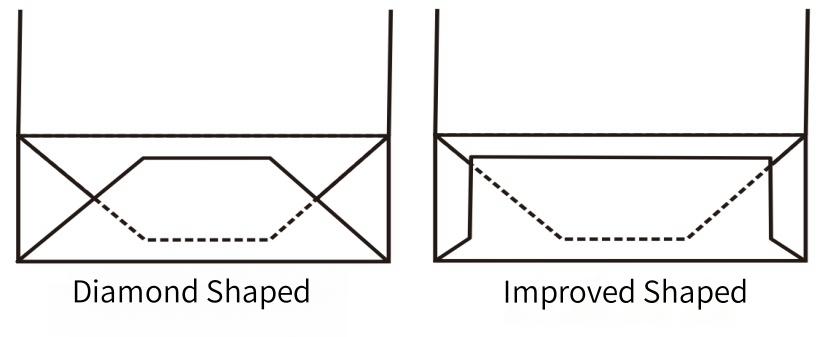

Bottom folding type

Cutting knife

Sawtooth cutting

Machine power

380V  3(phase) 4(wire) 42.54KW

Total weight

22000kg

Machine Dimension

15300x8000x2700mm

450ATF-Automatic High Speed Square Bottom Paper Bag Machine Could Be Customized Without 2 Colors Printing Machine.

Please send inquiry to get more detailed information.
