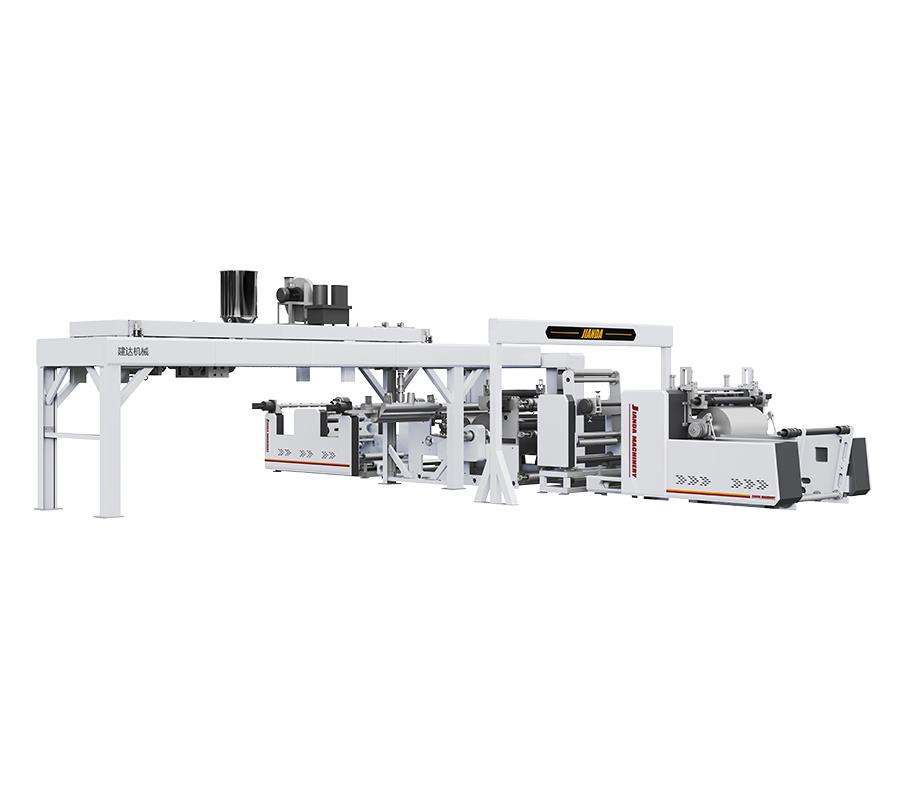

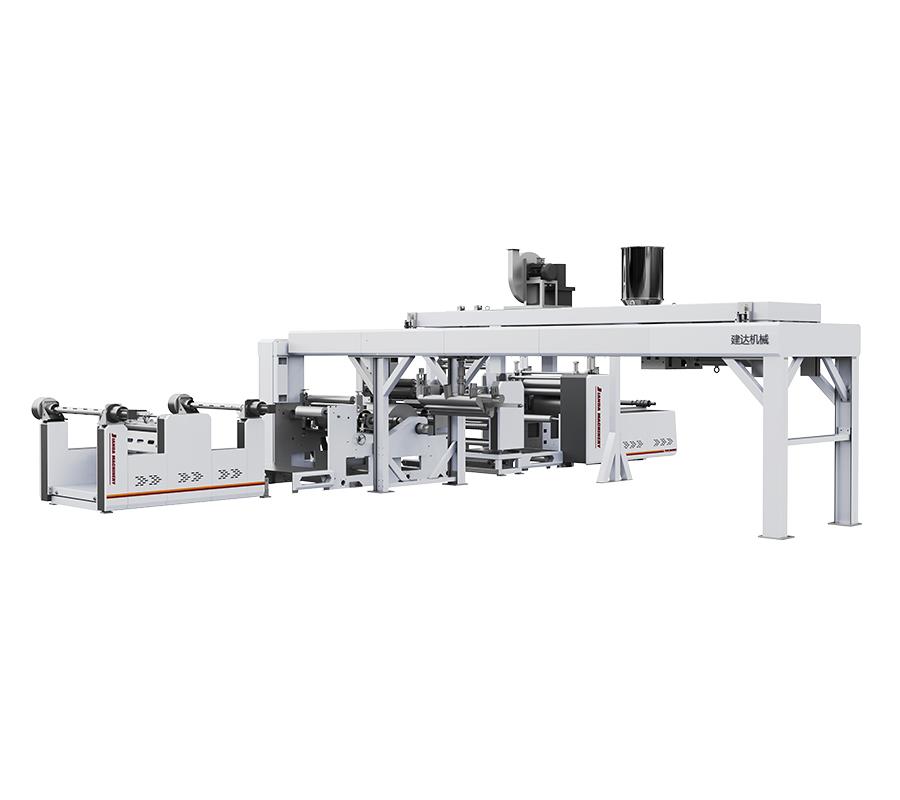

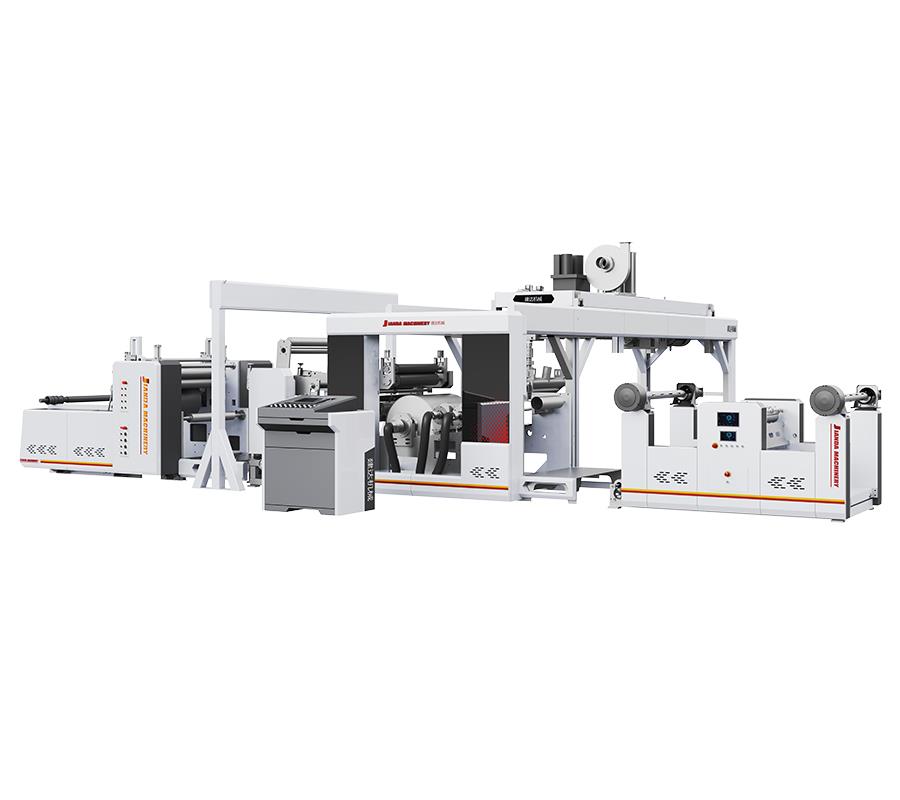

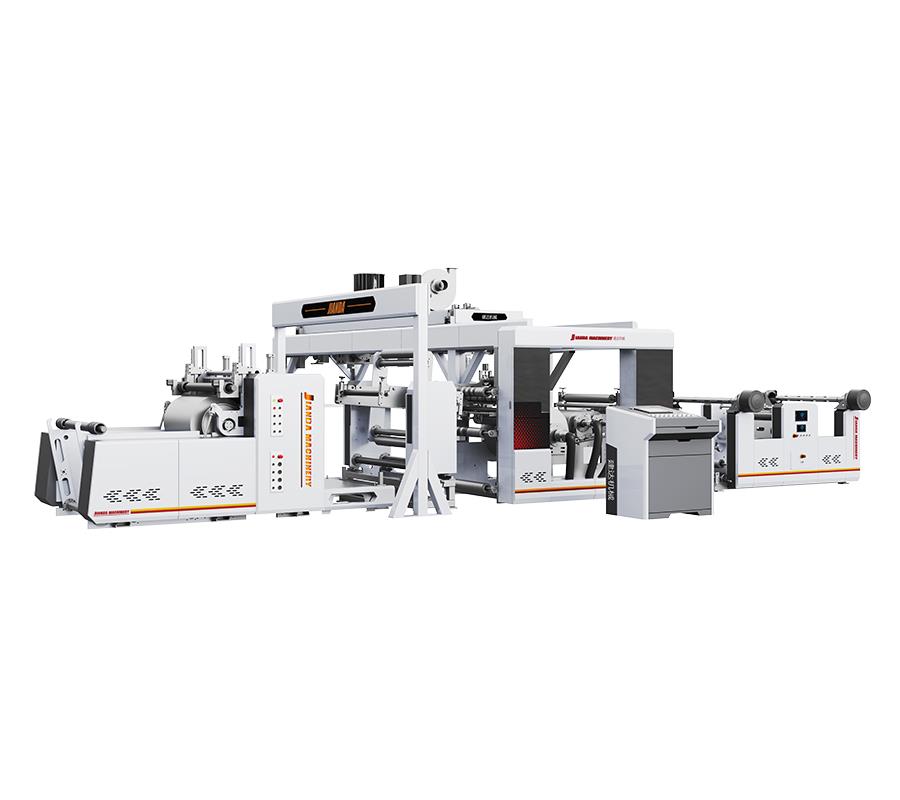

This production line is a high-speed extrusion lamination line speed up to 250m/min. It is suitable for the production of LDPE, PP and other coating grade material, To laminate Woven Sack, non-woven fabric and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials. Mainly designed for Non woven Fabric Laminating coating.
|
Model |
JDLM1300/90B |
JDLM1700/90B |
|
Screw Size |
Φ90mm *2 |
|
|
L/D |
33：1 |
|
|
Coating Width |
600-1200mm |
900-1600mm |
|
Coating Thickness |
7-35 g/㎡; |
|
|
Coating Material |
LDPE、PP |
|
|
Design Line Speed Speed |
210 m/min； Coating Speed: 120-180m/min，Precise Speed is based on the material and process technology. |
|
|
Max Extrusion |
150kg/h |
|
|
Main Motor |
30 kw |
|
|
Total Power |
≈97kw |
≈105kw |
|
Unwinder Diameter |
≤φ1200 mm |
|
|
Winding Diameter |
≤φ1300 mm |
|
|
Weight |
≈18t |
|
|
Overall Dimension |
9800×10000×3000 mm |
98000×10500×3000 mm |
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
|
|
Note: as the products are developing day by day, the technical data are subject to change without notice 。Different size model can be custom-made。 |
||
