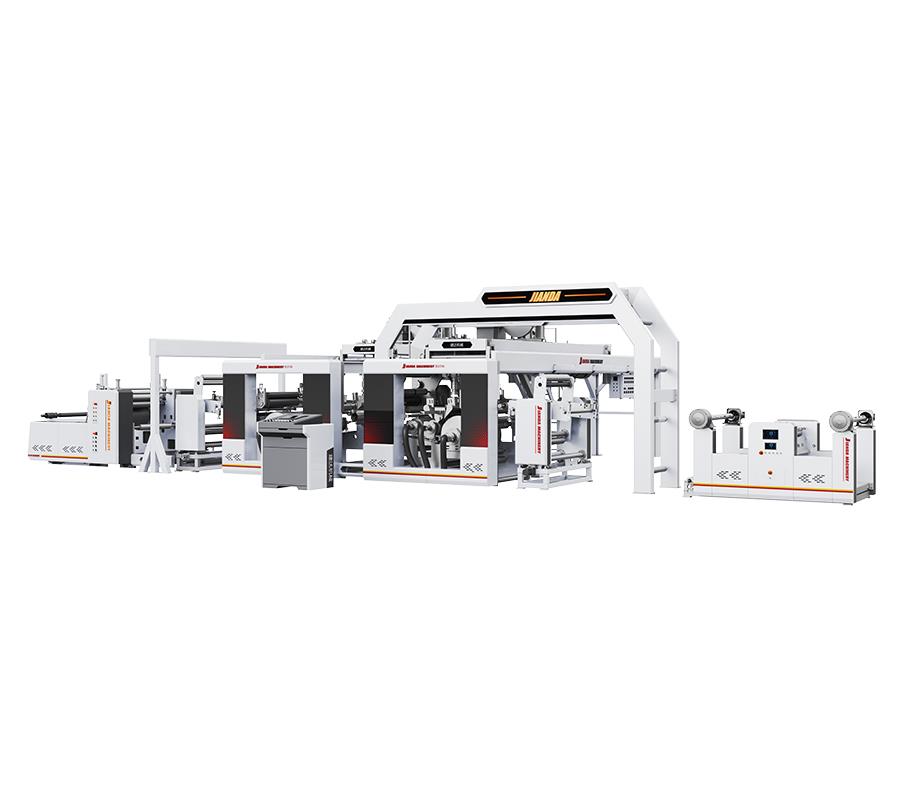

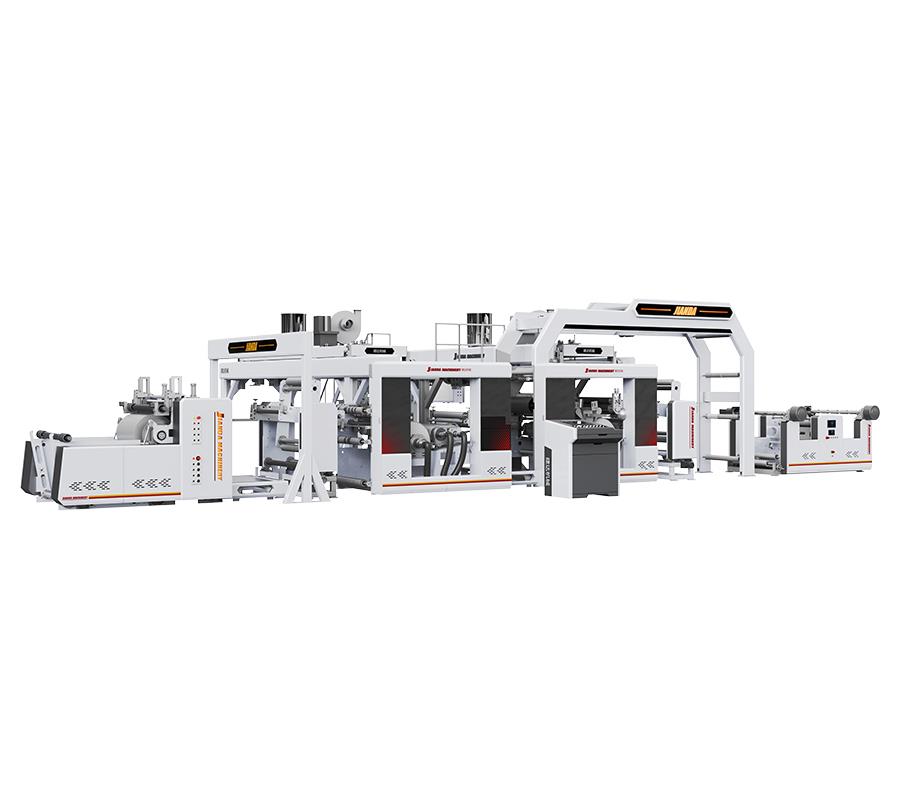

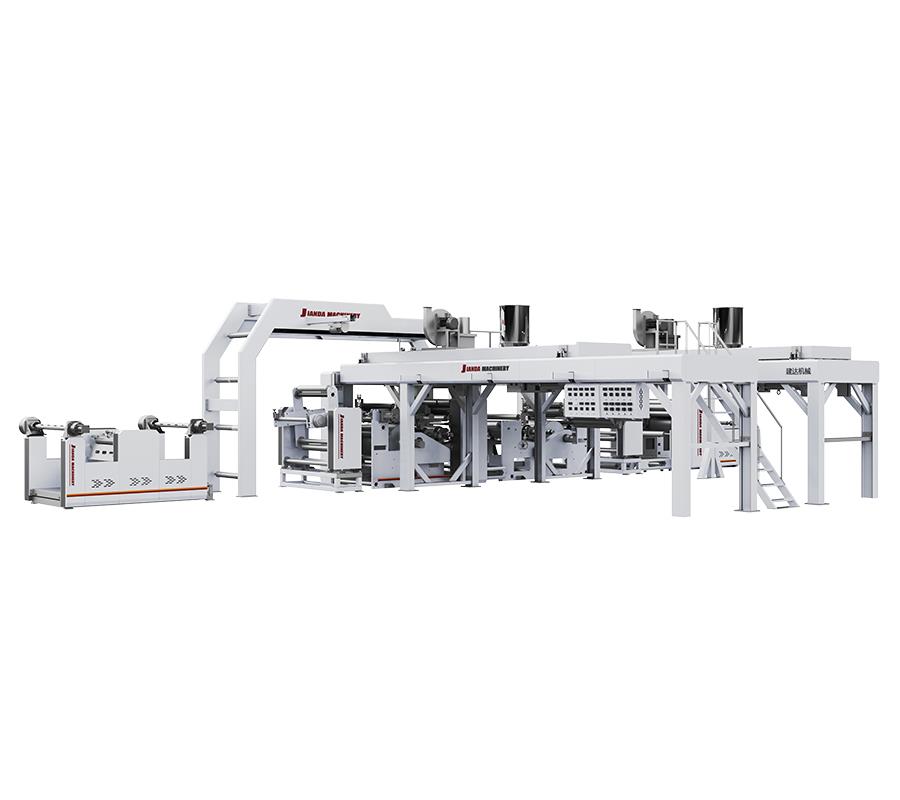

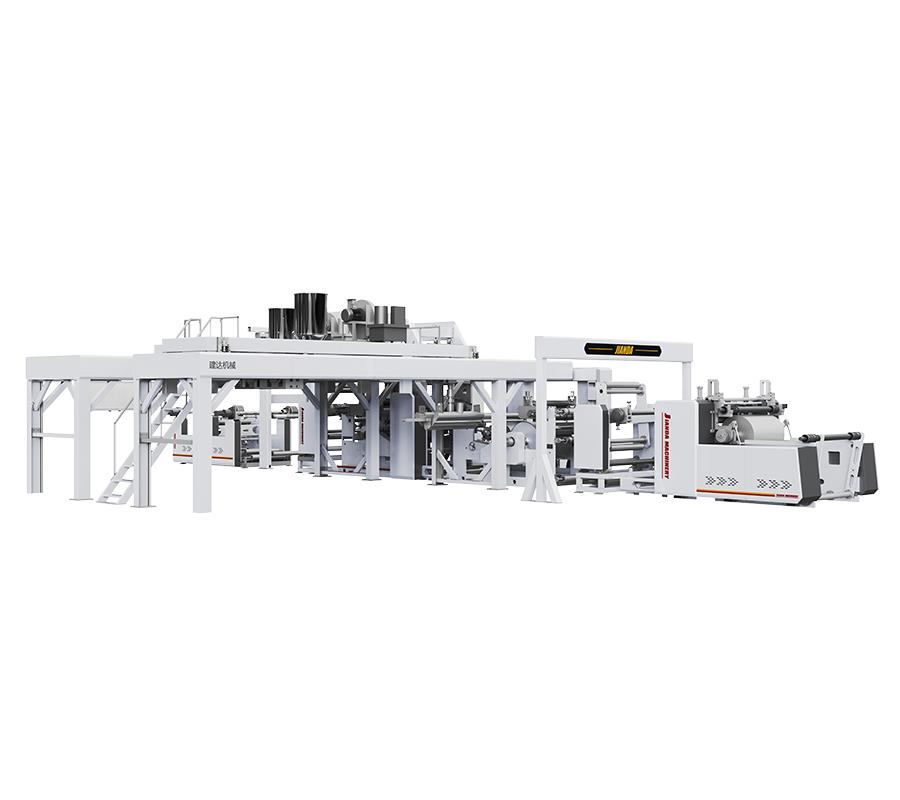

This production line is a high-speed extrusion lamination line speed up to 250m/min. It is suitable for the production of LDPE, PP and other coating grade material, To laminate Woven Sack, non-woven fabric and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials. Mainly designed for Non woven Fabric Laminating coating.
|
Model |
JDLM1300/90X2B |
JDLM1700/90X2B |
|
Coating Width |
600-1200mm |
900-1600mm |
|
Suitable Base Material |
Non-Woven Fabric, Woven Fabric |
|
|
Design Line Speed Speed |
210 m/min； Coating Speed: 120-180m/min，Precise Speed is based on the material and process technology. |
|
|
Total Power |
≈137kw |
≈165kw |
|
Unwinder Diameter |
≤φ1200 mm |
|
|
Winding Diameter |
≤φ1300 mm |
|
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
|
|
Note: as the products are developing day by day, the technical data are subject to change without notice 。Different size model can be custom-made。 |
||
