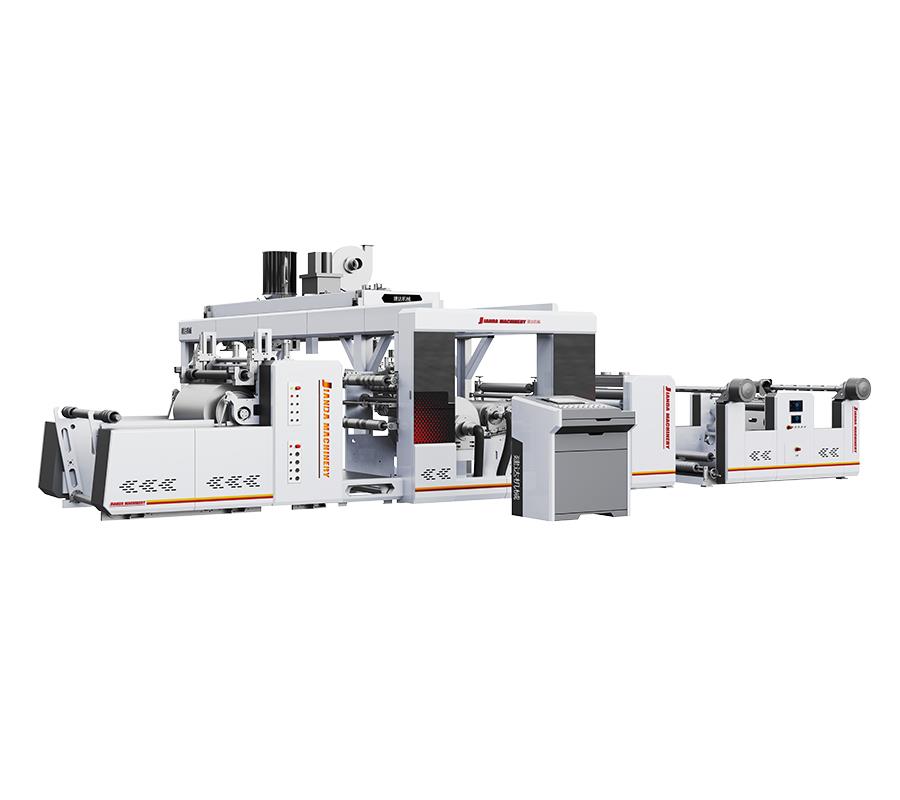

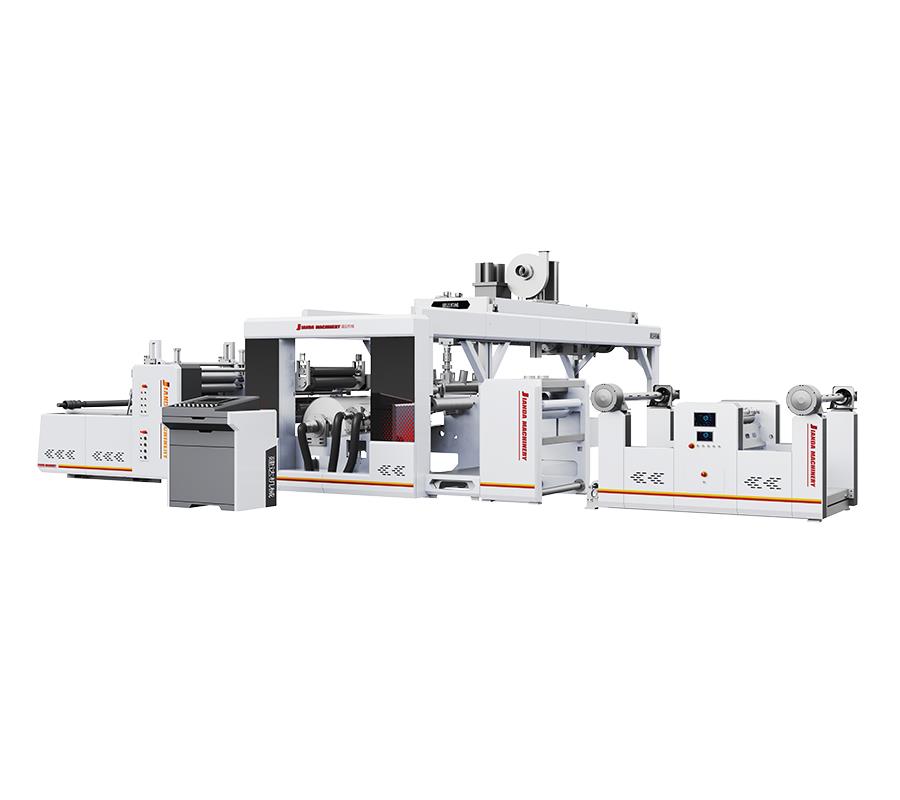

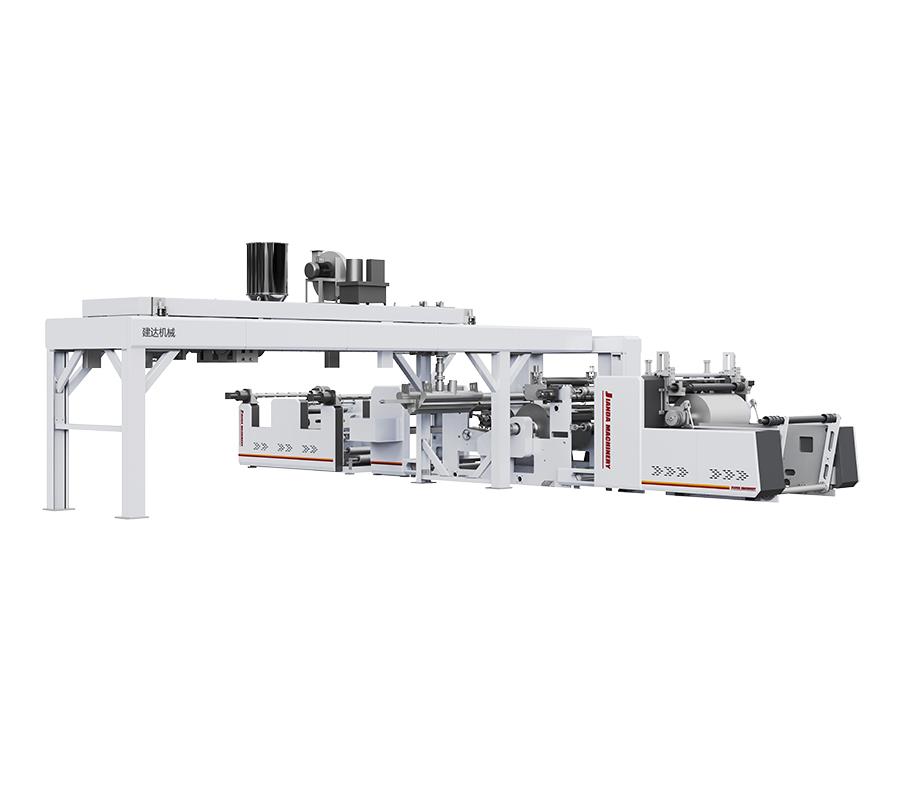

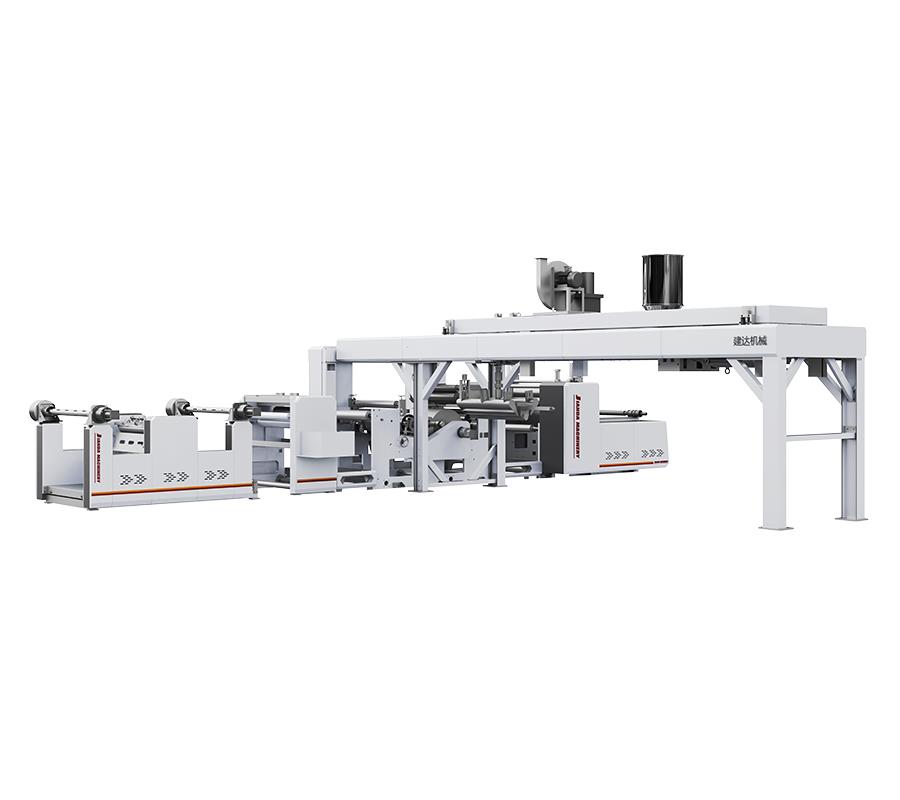

GII Single Side Extrusion Lamination Machine

This production line is a high-speed extrusion lamination line speed up to 250m/min. It is suitable for the production of LDPE, PP and other coating grade material, To laminate paper, non-woven fabric and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials.

This production line is a high-speed extrusion lamination line speed up to 250m/min. It is suitable for the production of LDPE, PP and other coating grade material, To laminate paper, non-woven fabric and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials.



Model

JDLM1300/100B

JDLM1700/100B

Coating Width

600-1200mm

900-1600mm

Suitable Base Material

Paper (35~350gram/㎡),Non-Woven Fabric, Woven Fabric

Design Line Speed Speed

210 m/min;

Coating Speed: 150-180m/min,Precise Speed is based on the material and process technology.

Max Extrusion

280kg/h

Main Motor

45 kw

Total Power

≈130kw

≈150kw

Unwinder Diameter

≤φ1200 mm

Winding Diameter

≤φ1300 mm

Power Supply

380/3/4/50(Volt/Ph/Line/Hz)

Note: as the products are developing day by day, the technical data are subject to change without notice 。Different size model can be custom-made。
