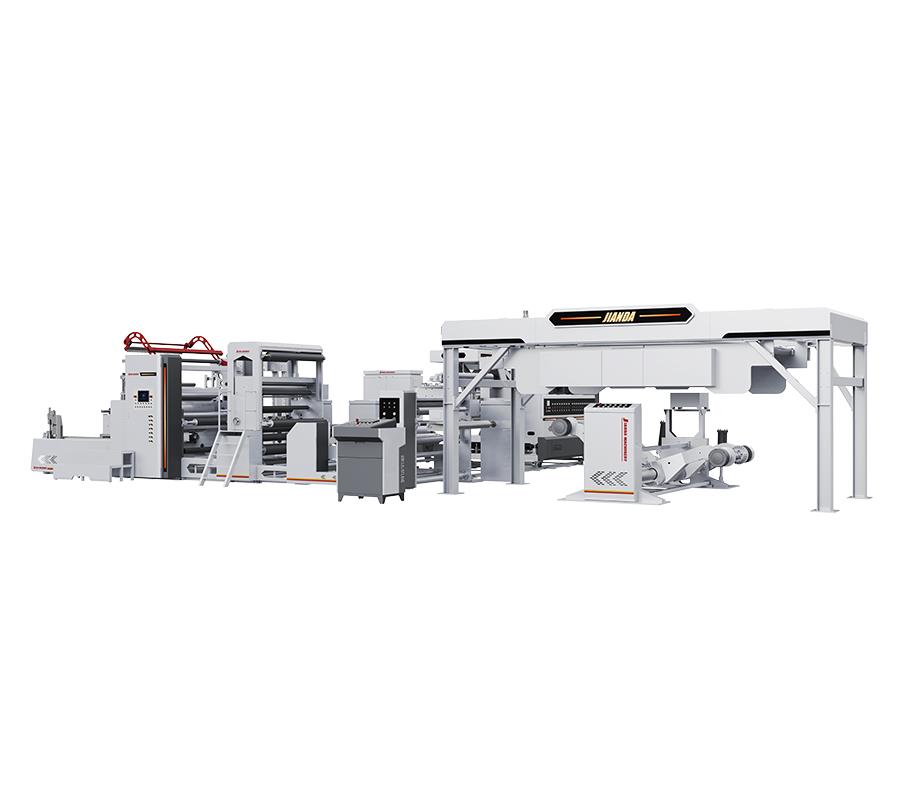

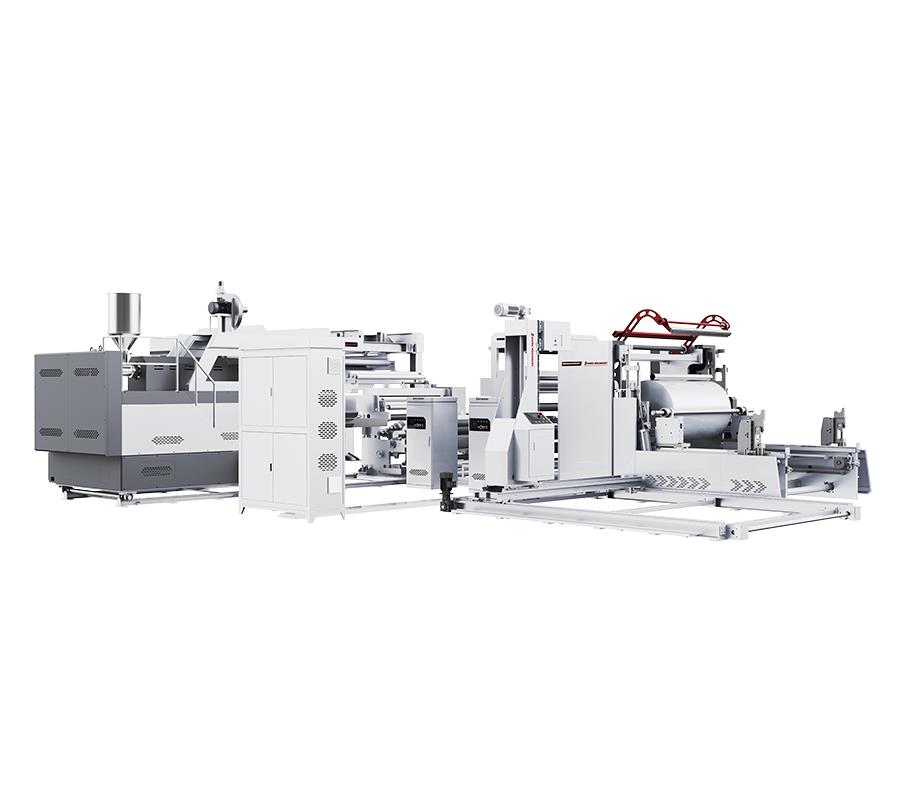

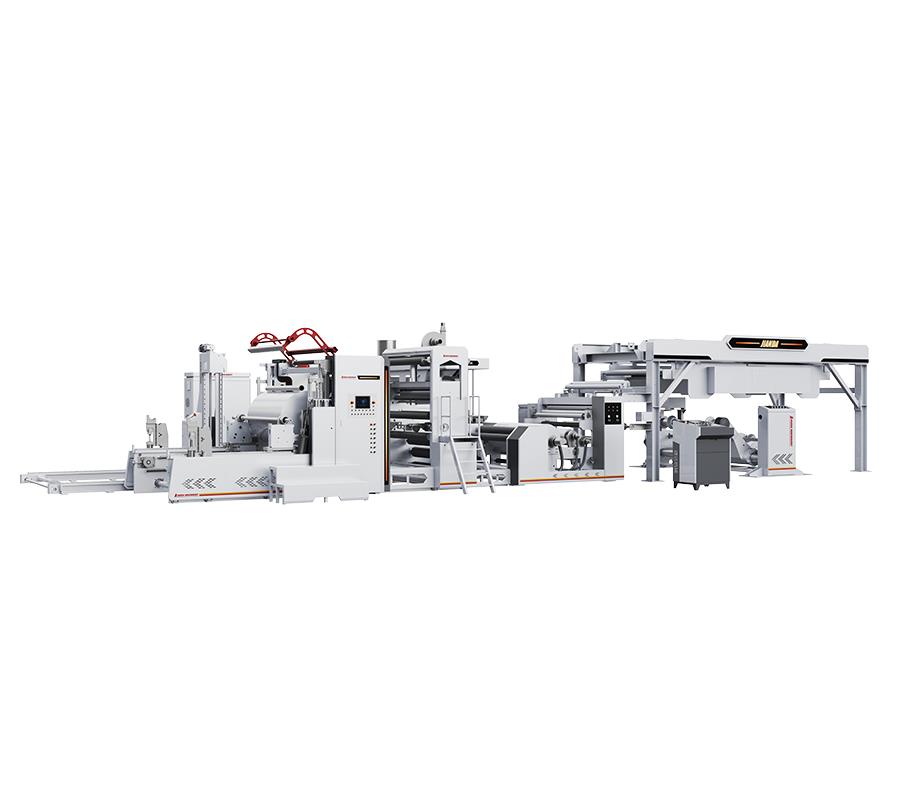

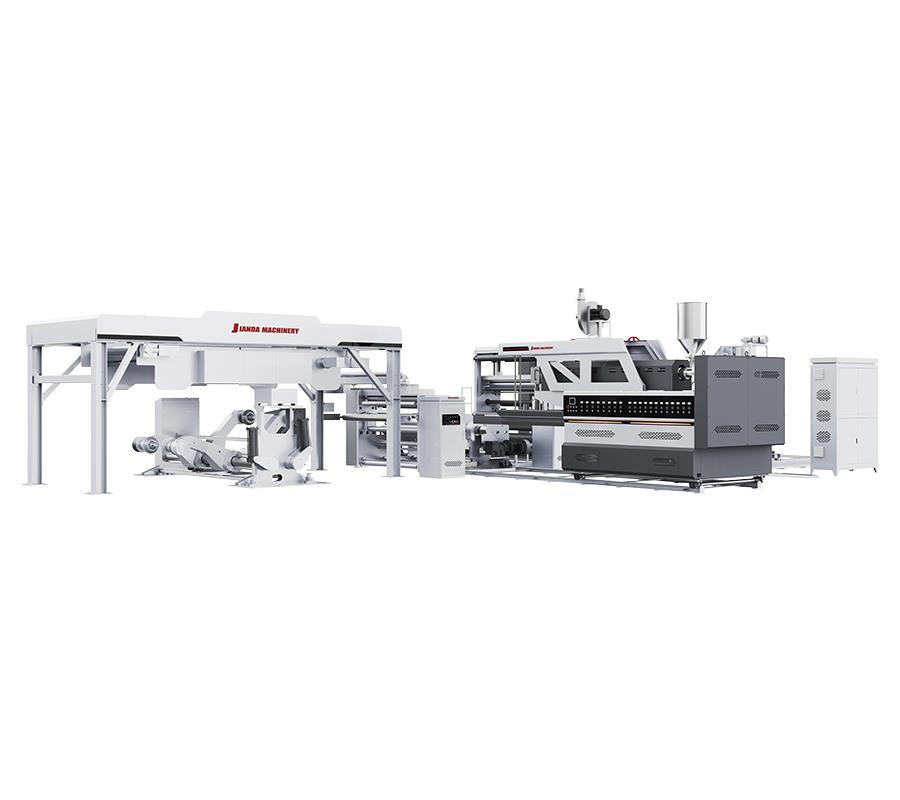

This production line is a high-speed extrusion lamination line speed up to 250m/min. It is suitable for the production of LDPE, PP and other coating grade material, To laminate paper, non-woven fabric and other materials as base materials. It is widely used in the production of pharmaceutical film, food packaging film, printing and office packaging, engineering and construction packaging, and other composite flexible packaging materials. Mainly designed for High GSM paper coating.
|
Model |
JDLM1300/110C |
JDLM1700/110C |
|
Coating Width |
600-1200mm |
900-1600mm |
|
Suitable Base Material |
High GSM Paper （65~450gram/㎡） |
|
|
Design Line Speed Speed |
270 m/min； Coating Speed: 180-240m/min，Precise Speed is based on the material and process technology. |
|
|
Main Motor |
55 kw |
|
|
Total Power |
≈160kw |
≈190kw |
|
Unwinder Diameter |
≤φ1500 mm |
|
|
Winding Diameter |
≤φ1600 mm |
|
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
|
|
Note: as the products are developing day by day, the technical data are subject to change without notice 。Different size model can be custom-made。 |
||
