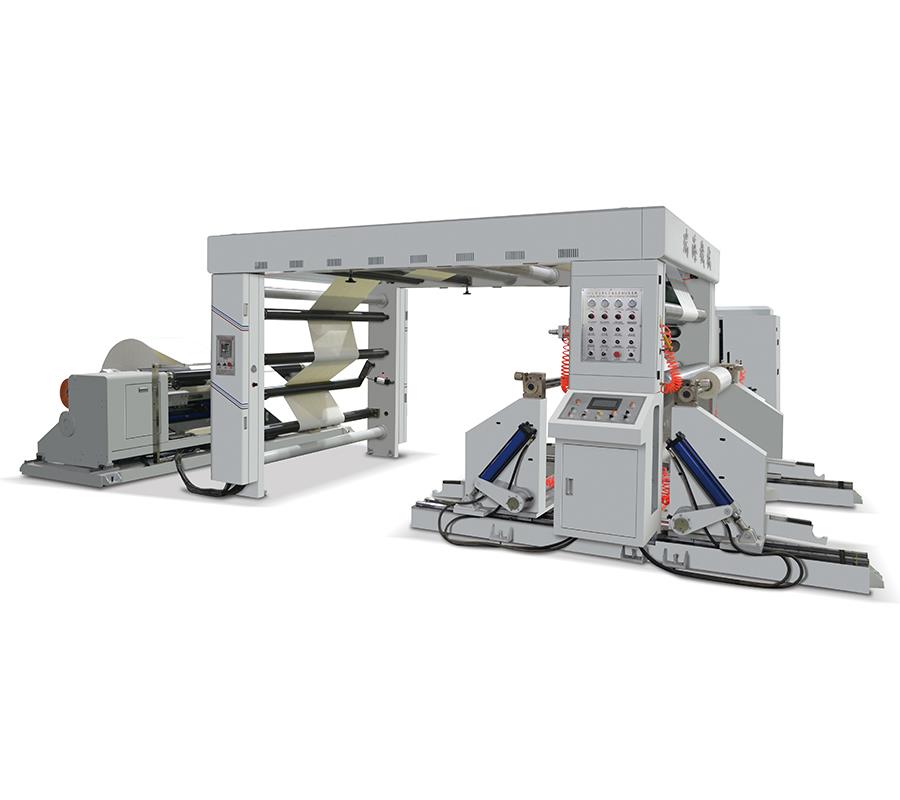

1.This machine use PLC controller, automatic taper tension, central surface reeling.
2.Frequency converter three motor vector control, keeping speedup and stable operation. It has the functions
o f a utomatic metering, automatic alarm, etc.
3.With A, B inflatable shaft structures for rewinding; Finished products are automatic loading and unloading. It adopts
photoelectric automatic error correction adjustment system for unwinding, materials will be easy slit.
4.Equipped with automatic waste paper inhaling blowing device. Automatic material loading by hydraulic system
for unwinding.
|
Model |
KFQ-1300 |
KFQ-1600 |
KFQ-1800 |
|
Max. Width of unwinding |
1300mm |
1600mm |
1800mm |
|
Max. Diameter of unwinding |
Φ1600mm |
Φ1600mm |
Φ1600mm |
|
Min. Width of slitting |
50mm |
50mm |
50mm |
|
Max. Diameter of rewinding |
Φ1500mm |
Φ1500mm |
Φ1500mm |
|
Speed |
10-350m/min |
10-350m/min |
10-350m/min |
|
Total power |
48kw |
50kw |
63kw |
|
Weight (approx.) |
12000kg |
1400kg |
1600kg |
|
Overall dimension (LxWxH) (mm) |
7500x3500x2400 |
7500x3700x2400 |
7500x3800x2400 |
