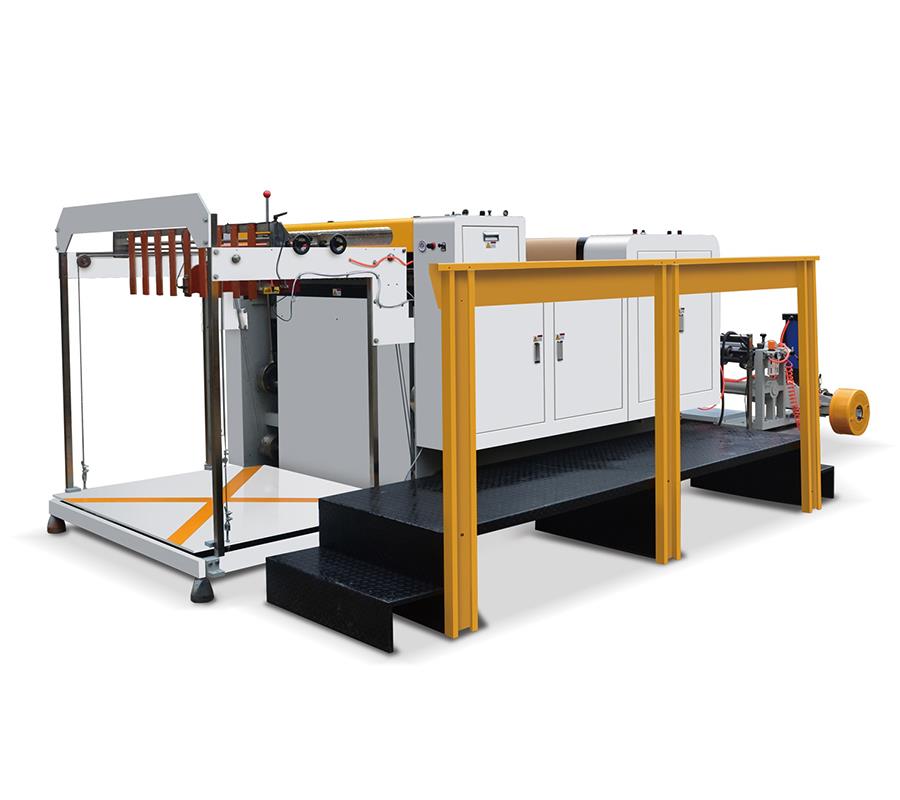

This machine is suitable for horizontal and vertical cutting rolling materials such as, chrome paper, coated paper and kraft paper, etc.
It's much more suitable for production of paper making and paper,and printing packaging process industry.
1.Adopts pneumatic automatic materials loading system with much easy operation and convenience.
2.Adopts imported heavy vertical type cutters with orderly finished products and without water caltrop; meantime, it can be used for
horizontal cutting and vertical cutting at one time ( Optional device ).
3.It has the function of automatic stacking which is in order. Photoelectric auto tracing subtense system.
4.Photo eletric tracking suits for printing material ( Optional device )
|
Model |
ZHQ-1100B |
ZHQ-1400B |
|
Max. Width of cutting |
1100mm |
1400mm |
|
Max. Diameter of material |
Φ1400mm |
Φ1400mm |
|
Min. Width of cutting |
50mm |
50mm |
|
Speed |
10-180times/min |
10-180times/min |
|
Precision |
±0.2mm |
±0.2mm |
|
Total Power |
7.5kw |
8.5kw |
|
Weight (approx. ) |
4200kg |
4500kg |
|
Overall dimension (LxWxH) |
5700×2100×1750(mm) |
5700×2300×1750(mm) |
